Efficient PCB Cleaning for
High-Quality SMT Production
High-Quality SMT Production
Efficient PCB Cleaning for High-Quality
SMT Production
SMT Production
In modern electronics manufacturing, reliable PCB cleaning is essential to ensure quality, process stability, and long-term product reliability. Residues from flux, solder paste, adhesives or contaminants can negatively affect the performance of assembled PCBs and production tools. Our professional SMT-cleaning solutions and cleaning equipment deliver consistent cleanliness, prevent failures, and reduce expensive rework – helping you improve product quality while lowering operating costs.
As electronic assemblies become more complex, the demand for effective circuit board cleaning continues to rise. Fine structures, dense component placement, and no-clean processes require dependable and precise cleaning systems. Even minimal contamination can lead to malfunctions over time. Whether you need PCBA cleaning, stencil cleaning, or cleaning of reflow oven heat sinks and soldering fixtures, our cleaning machines offer the right solution for every task in SMT production. Our sustainable systems support you in running an efficient, environmentally friendly and stable SMT cleaning process.
Why Professional PCB Cleaning Matters in SMT Production:
Application Areas: The Right SMT-Cleaning Solution for Each Process
Automated Cleaning Machines for SMT Production
Our portfolio includes solutions for every cleaning requirement in electronics manufacturing. Each system uses specialized cleaning technology and offers unique advantages.
K3000L – High-Pressure Stencil Cleaning Machine
A powerful stencil cleaning solution for large stencils and squeegees. The K3000L uses a vertical high-pressure spray system to remove organic and inorganic residues – ideal for demanding SMT lines. Cleaning, rinsing and drying are fully automated in a closed 3-in-1 cycle.
Key advantages:

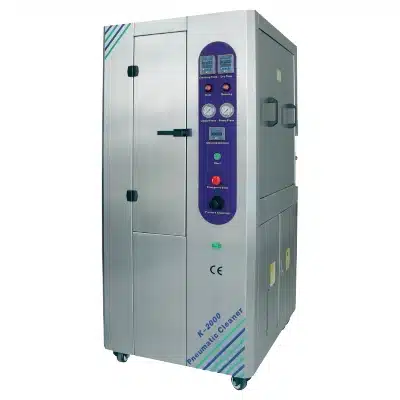

K2000 – Pneumatic Stencil Cleaning System
The K2000 cleans SMT stencils using a rotating spray arm for efficient and uniform cleaning. A pneumatic membrane pump ensures stable and strong cleaning performance.
Key advantages:
E600 – Flexible PCBA Cleaning Machine
The E600 is a compact cleaning system for PCBA, fixtures for assembled PCBs, optical parts, and mechanical components, ideal for small and medium production volumes. With two independent liquid circuits, it ensures maximum process reliability and minimal media consumption.
Key advantages:
D1000 – Rotational Cleaning for Maintenance Parts
The D1000 is perfectly suited for large mechanical parts such as magazine racks, soldering pallets, reflow oven heat sinks, and filters. Thanks to its spacious cleaning chamber, up to 32 pallets with a standard size of 400 mm x 400 mm can be cleaned simultaneously per cycle.
Key advantages:
D500 – Ultrasonic PCB Cleaner for Mechanical Parts
The D500 is a powerful ultrasonic bath designed for thorough and gentle cleaning of machine parts, reflow oven filters, and fixtures for assembled PCBs.
With ultrasonic transducers integrated into the bottom and side walls, the D500 generates 3-dimensional ultrasonic waves that ensure optimal distribution of cleaning energy. This allows the cleaning fluid to penetrate even the finest structures and narrow gaps – ideal for delicate components with fine-pitch geometries.
Key advantages:

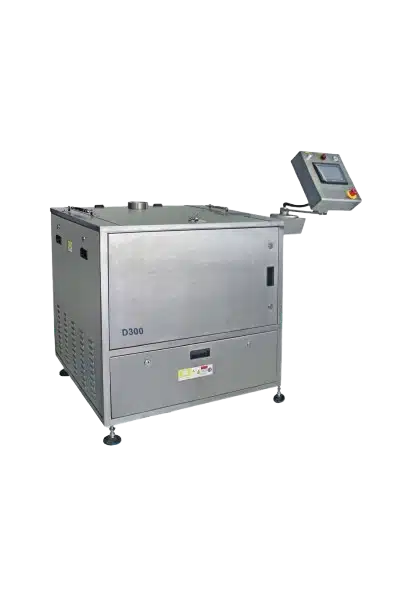

D300 – Compact Ultrasonic Cleaning Machine
The D300 was specifically engineered for the efficient cleaning of mechanical parts such as fixtures for assembled PCBs. Its compact design combined with powerful ultrasonic technology ensures thorough and gentle removal of residues – even in complex geometries and hard-to-reach areas.
Key advantages:
BNC-8000 – Nozzle Cleaner for Maximum Process Reliability
The BNC-8000 nozzle cleaner processes up to 30 SMT nozzles simultaneously in just 5 minutes – without any chemicals, using only deionized water and compressed air. A multi-stage cleaning and drying process cleans the nozzles thoroughly from all sides, including internal channels.
The result: consistent placement accuracy, fewer failures, and stable production quality.
Key advantages:
Our Key Concepts: Innovation for Your SMT Production
Our Key Concepts: Innovation for
Your SMT Production
Your SMT Production
Precise Cleaning Technology
- Ultrasonic technology and high-pressure spraying ensure thorough cleaning for fine-pitch layouts, BGA, and QFN.
- Targeted cleaning reaches under components and into narrow gaps.
- Residue-free results even on densely populated assemblies and sensitive components.
- Validated processes ensure reproducible quality at the highest level.
High-Quality & Process-Secure
- Consistent media quality ensured by integrated filtration systems and chemical management.
- Comprehensive process control via touchscreen PLC, optionally with traceability.
- Documentation of all cleaning steps for reproducible quality and full transparency.
- Reproducible results minimize scrap and ensure stable SMT processes regardless of production volume.
Intuitive Operation
- The intuitive touchscreen interface is immediately understandable, even for new operators.
- Minimal training effort enables time-saving onboarding.
- Preconfigured programs allow a quick start without manual adjustments.
- Real-time process visualization provides full control throughout the entire cleaning cycle.
Sustainability in Focus
- Long-lasting PCBA cleaning reduces material wear and lowers disposal effort.
- Closed-loop systems enable reuse of cleaning and rinsing media – reducing waste and consumption.
- Stainless steel construction ensures durability and chemical resistance.
- Long-term cost savings combined with reduced environmental impact – a clear advantage for production.
Precise Cleaning Technology
- Ultrasonic technology and high-pressure spraying ensure thorough cleaning for fine-pitch layouts, BGA, and QFN.
- Targeted cleaning reaches under components and into narrow gaps.
- Residue-free results even on densely populated assemblies and sensitive components.
- Validated processes ensure reproducible quality at the highest level.
High-Quality & Process-Secure
- Consistent media quality ensured by integrated filtration systems and chemical management.
- Comprehensive process control via touchscreen PLC, optionally with traceability.
- Documentation of all cleaning steps for reproducible quality and full transparency.
- Reproducible results minimize scrap and ensure stable SMT processes regardless of production volume.
Intuitive Operation
- The intuitive touchscreen interface is immediately understandable, even for new operators.
- Minimal training effort enables time-saving onboarding.
- Preconfigured programs allow a quick start without manual adjustments.
- Real-time process visualization provides full control throughout the entire cleaning cycle.
Sustainability in Focus
- Long-lasting PCBA cleaning reduces material wear and lowers disposal effort.
- Closed-loop systems enable reuse of cleaning and rinsing media – reducing waste and consumption.
- Stainless steel construction ensures durability and chemical resistance.
- Long-term cost savings combined with reduced environmental impact – a clear advantage for production.
Cleaning as a Success Factor for Reliable Conformal Coating Results
Thorough PCBA cleaning is essential for stable and durable conformal coating processes in SMT production. Clean assemblies ensure strong coating adhesion, minimize failures, and increase long-term reliability.
Benefits at a Glance:
Learn more about our conformal coating solutions – perfectly matched to your SMT cleaning needs.
Learn more about Conformal Coating…
Your SMT Production in Focus: Our Turnkey Solutions
Your SMT production deserves the optimal combination of efficiency, precision, and quality. Our turnkey SMT lines provide fully integrated solutions with perfectly synchronized machines and cutting-edge technologies to ensure maximum performance and process reliability.
Discover more about our complete SMT line solutions and get expert advice from our team to find the perfect setup for your production needs.
