jCURE-2UV+:
The Next Generation of Ultraviolet Curing Ovens

jCURE-2UV+:
The Next Generation of
Ultraviolet Curing Ovens

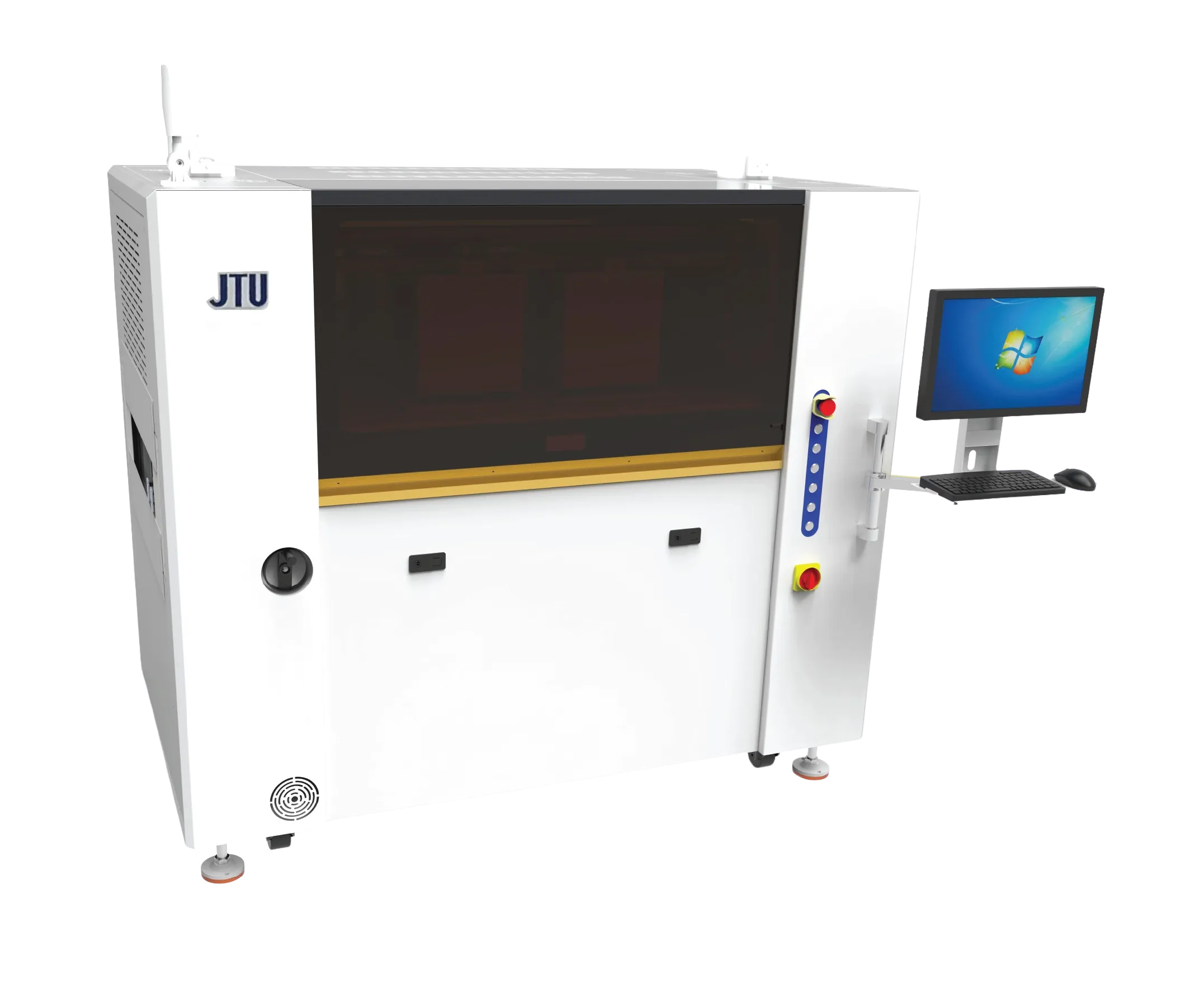

JTU UV curing oven for rapid hardening of conformal coating in SMT manufacturing

The jCURE-2UV+ represents the latest innovation in UV curing technology for SMT conformal coating lines. Engineered for the efficient curing of conformal coatings on PCBAs, this fully automated system is designed to meet the highest standards of quality and production capacity. Equipped with state-of-the-art technology, the jCURE-2UV+ optimizes the curing process, eliminates downtime, and maximizes production efficiency. Thanks to its compact footprint, the jCURE-2UV+ saves valuable production space, while the integrated Eco-Mode automatically adjusts energy usage for optimal efficiency. This makes the jCURE-2UV+ the perfect choice for manufacturers who prioritize quality, efficiency, and sustainability in their SMT processes.

Key Features of the jCURE-2UV+ UV Curing Oven:

  • High curing performance: 119 W/cm² UV intensity for rapid and efficient curing.

  • Wide UV coverage: Curing area of up to 200 × 400 mm.

  • Space-saving design: Compact footprint minimizes production space requirements.

  • Energy-saving operation: Automatic Eco-Mode reduces power consumption.

  • SMEMA integration: Compatible with existing SMT production lines.

JTU UV curing oven for rapid hardening of conformal coating in SMT manufacturing

What is Conformal Coating?

Conformal coating is a thin protective layer applied on the surface of PCBA to shield them from environmental influences such as moisture, dust and corrosion. This coating is typically applied using an automatic selective coating machine, which ensures high precision and repeatability.

Learn more about conformal coating…

UV Curing in Conformal Coating: From Process to Perfection

UV curing is a process in which UV-sensitive conformal coating materials are polymerized and hardened using ultraviolet radiation. Compared to traditional thermal curing methods, UV technology offers significantly faster cycle times and minimizes thermal stress on sensitive electronic components. The jCURE-2UV+ curing oven uses two mid-sized UV lamps with adjustable intensity to ensure uniform and controlled curing. This enables precise control of the curing level and significantly reduces rework and material waste – making it a top choice for efficient conformal coating lines.

Why the jCURE-2UV+ Is the Smarter Choice for Your Conformal Coating Line

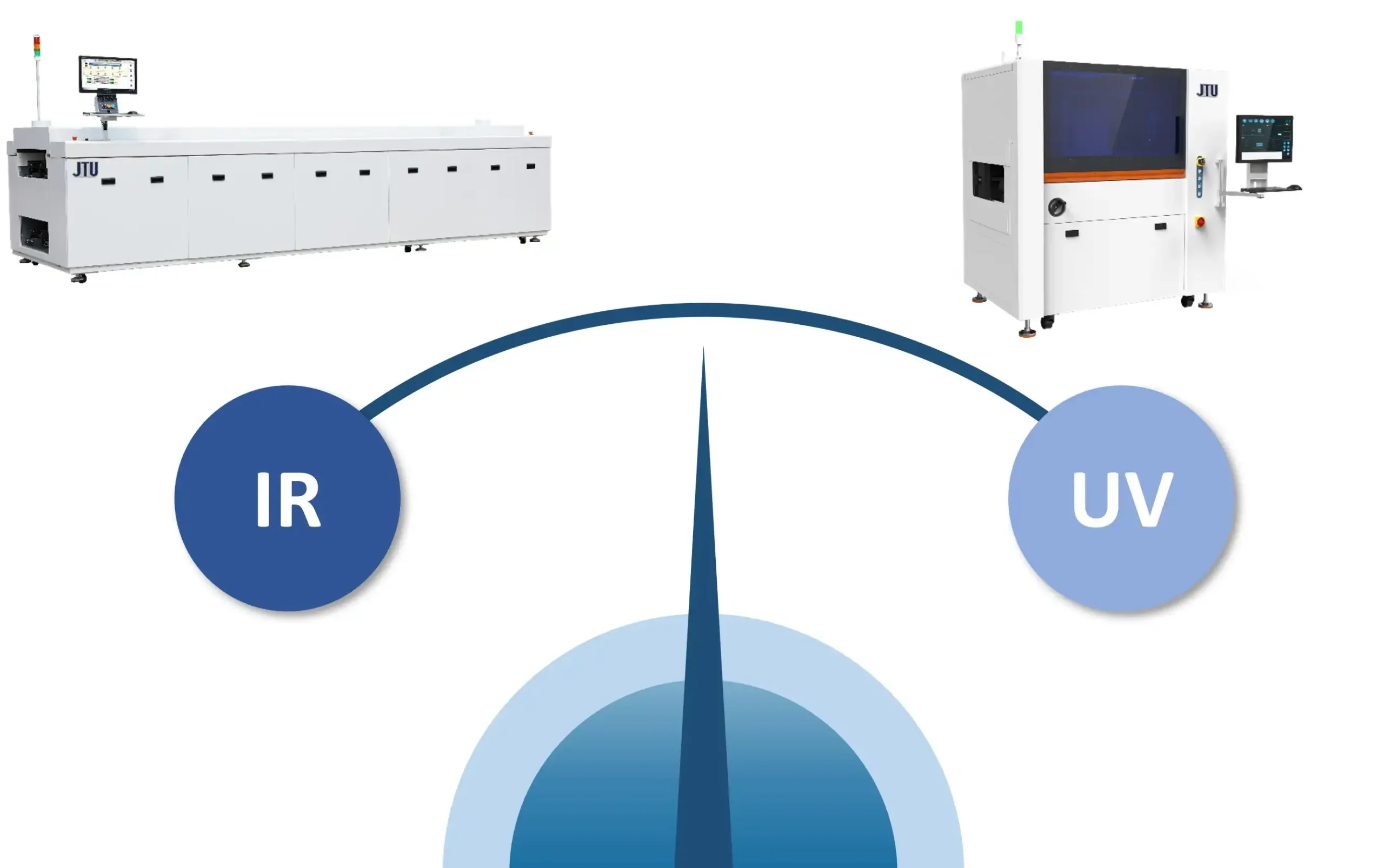

Graphic comparison of UV and IR curing ovens for SMT conformal coating

  • Space Requirements: Compact design reduces space requirements by up to 75% compared to traditional IR ovens.

  • Superior Energy Efficiency: Faster curing and lower heat generation result in significantly better energy efficiency.

  • Component-Safe Curing: Ensures safe processing of temperature-sensitive components without overheating.

  • Flexible Power Control: Equipped with two UV lamps and adjustable intensity for optimal adaptation to different coating materials.

Graphic comparison of UV and IR curing ovens for SMT conformal coating

Advantages of the jCURE-2UV+ Curing Oven

  • Durable Components: UV lamps with a minimum service life of 1.000 operating hours.

  • Reduced Operating Costs: Optimized UV technology significantly lowers energy consumption.

  • Increased Productivity: Faster curing cycles boost overall throughput.

  • Advanced Process Control: Integrated PLC system for precise monitoring and optimization of curing parameters.

  • Sustainability: Operation without harmful emissions or waste – ideal for eco-conscious production.

Optional Features:

  • Pallet Return Conveyor: Underside chain conveyor for returning pallets to the starting position.

  • Automatic Width Adjustment for Return Conveyor: Upgrade from motorized to fully automatic width control for the return conveyor.

  • 3-Phase Transformer: For alternative power supply (other than AC380V) – can be integrated if a return conveyor is not installed.

Optimized Conformal Coating: Our Complete Solution for Your Production

Your electronics manufacturing deserves the best combination of efficiency, precision and quality. Our complete conformal coating solutions provide you with a fully integrated production line that leverages state-of-the-art technologies to ensure maximum process reliability and product quality.

  • C Series Conformal Coating Machines:Precise and reliable conformal coating for your PCBAs with flexible application options.

  • jCURE+ Series IR Ovens: Efficient curing through advanced infrared technology for even material-friendly hardening.

  • jCURE-2UV+ curing ovens:High-intensity UV curing for fast and precise drying processes in a compact footprint.

  • TR7700 SIII Ultra CI Inspection System: Automated conformal coating inspection using high-resolution imaging and laser sensors to measure coating thickness.

  • Board Handling Systems: Automated conveyors and handling units for stable material flow, optimized processes and increased efficiency.

  • Industry 4.0: Automation and traceability software, including closed-loop control between process stages to ensure consistent process quality.

Discover more about our complete conformal coating solutions and let our team provide you with an individual consultation to find the ideal line solution for your production.
